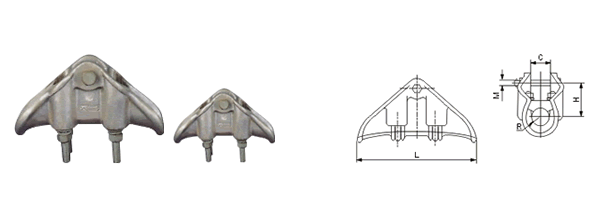

悬垂线夹(XGF 防晕型)
|
型号
Type |
适用导线范围
Applicable conductor(mm) |
主要尺寸Dimensions(mm)
|
破坏荷重
Failure load(kN) |
重量
Weight (kg) |
||||
|
H
|
C
|
M
|
R
|
L
|
||||
|
XGF-6
|
36.0~43.0
|
70
|
44
|
18
|
22
|
300
|
80
|
3.8
|
|
XGF-53
|
43.0~51.0
|
100
|
56
|
16
|
26
|
350
|
70
|
5.6
|
|
XGF-6X/GH
|
34.0~43.0
|
92
|
48
|
18
|
22
|
300
|
90
|
5.8
|
线夹本体和压板为铝合金件，闭口销为不锈钢制件，其余为热镀锌钢制件。
The clamp body and keepers are aluminium alloy,cotter-pin is stainless steel,the other parts are hot-dip galvanizek steel.
