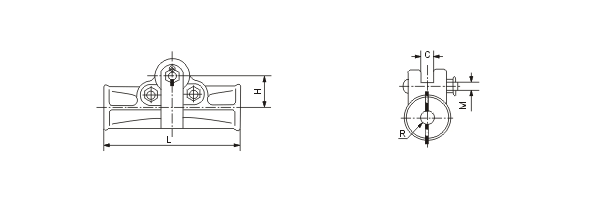

悬垂线夹(CGF 悬扛通用)
|
型号
Type |
适用导线范围
Applicable conductor(mm) |
主要尺寸Dimensions(mm)
|
破坏荷重
Failure load(kN) |
重量
Weight (kg) |
||||
|
C
|
M
|
H
|
L
|
R
|
||||
|
CGF-300
|
23.7
|
24
|
16
|
60
|
250
|
13.5
|
40
|
3.0
|
|
CGF-400
|
26.8
|
24
|
16
|
60
|
250
|
15.8
|
40
|
3.5
|
|
CGF-1400
|
51.0
|
24
|
16
|
63
|
260
|
26.5
|
60
|
4.8
|
|
CGF-1440N
|
51.36
|
24
|
16
|
63
|
300
|
26.5
|
60
|
5.5
|
线夹本体和压板为铝合金件，闭口销为不锈钢制件，其余为热镀锌钢制件。
The clamp body and keepers are aluminium alloy,cotter-pin is stainless steel,the other parts are hot-dip galvanized steel.
备注：以上产品八五标准型号为XGF
