悬垂线夹(CGF 下垂式)
|
型号
Type |

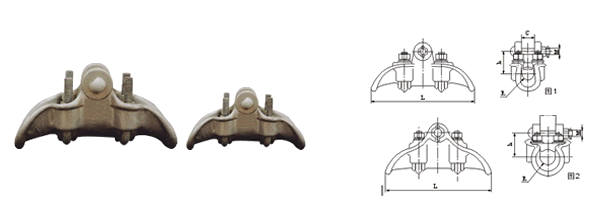

简图Fig
|
适用导线范围
Applicable conductor(mm) |
主要尺寸Dimensions(mm)
|
破坏荷重
Failure load(kN) |
重量
Weight (kg) |
||||
|
C
|
M
|
h
|
R
|
L
|
|||||
|
CGF-5X
|
1
|
23.7~27.6
|
32
|
16
|
65
|
17
|
300
|
60
|
3.5
|
|
CGF-6
|
2
|
36~43
|
48
|
18
|
70
|
23
|
300
|
70
|
4.5
|
|
CGF-9X
|
2
|
35~44
|
48
|
18
|
70
|
23
|
300
|
90
|
4.6
|
|
CGF-53
|
2
|
43.0~51.0
|
56
|
16
|
100
|
26
|
350
|
70
|
5.6
|
线夹本体和压板为铝合金件，闭口销为不锈钢制件，其余为热镀锌钢制件。
The clamp body and keepers are aluminium alloy , cotter-pin is stainless steel, the other parts are hot-dip galvanizek steel.
