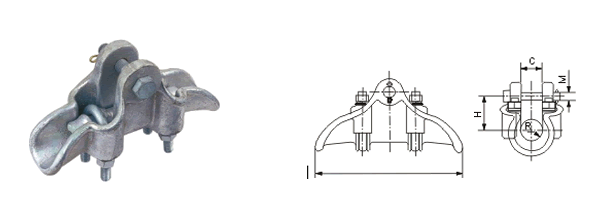

悬垂线夹(CGH 铝合金、提包式)
|
型号
Type |
适用导线范围
Applicable conductor(mm) |
主要尺寸Dimensions(mm)
|
破坏荷重
Failure load(kN) |
重量
Weight (kg) |
||||
|
H
|
C
|
M
|
R
|
L
|
||||
|
CGH-3T
|
12.4~17.0
|
53
|
20
|
16
|
10
|
180
|
40
|
1.5
|
|
CGH-3A
|
12.4~17.0
|
50
|
22
|
16
|
10
|
180
|
50
|
1.5
|
|
CGH-4T
|
19.0~23.5
|
74
|
28
|
16
|
12
|
226
|
40
|
2.3
|
|
CGH-5T
|
24.2~28.0
|
87
|
35
|
16
|
15
|
262
|
60
|
2.8
|
|
CGH-6T
|
34.0~45.0
|
90
|
36
|
16
|
23
|
300
|
70
|
3.5
|
线夹本体和压板为铝合金件，闭口销为不锈网制件，其余为热镀锌钢制件。
The clamp body and keepers are aluminium alloy , cotter-pin is stainless steel , the other parts are hot –dip galvanizek steel.
备注：以上产品八五标准型号为XGH
