悬垂线夹(CGJ)
●规格及技术参数Specification
|
型号
Type |
适用导线范围
Applicable conductor(mm) |

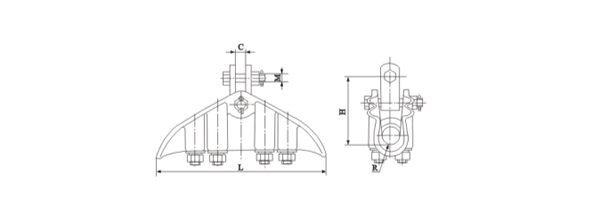

主要尺寸Dimensions(mm)
|
破坏荷重
Failure load(kN) |
重量
Weight (kg) |
||||
|
H
|
C
|
M
|
R
|
L
|
||||
|
CGJ-2
|
11.0~13.0
|
52
|
18
|
16
|
8
|
300
|
50
|
3.8
|
|
CGJ-3
|
13.0~18.0
|
133
|
18
|
16
|
9
|
380
|
70
|
8.0
|
|
CGJ-4
|
22.0~31.0
|
193
|
26
|
24
|
16
|
400
|
125
|
13.0
|
|
CGJ-5
|
31.0~43.0
|
232
|
44
|
30
|
22
|
500
|
200
|
20.0
|
|
CGJ-3HT
|
33.0~39.0
|
187
|
24
|
22
|
20
|
390
|
100
|
12.4
|
|
CGJ-5H
|
36.0~43.0
|
202
|
26
|
24
|
22
|
400
|
120
|
14.5
|
|
CGJ-5Z
|
36.0~43.0
|
202
|
26
|
24
|
22
|
400
|
120
|
16.0
|
|
CGJ-6Z
|
36.0~47.0
|
212
|
26
|
24
|
24
|
500
|
150
|
20.0
|
线夹本体和压板为锻铸铁件，闭口销为不锈钢制件，其余为钢制件，可锻铸铁件和钢制件热镀锌。
The clamp body, keepers and socket-clevis are malleable iron ,the closed-pin is stainless steel work.The other parts are steel, All ferrows parts are holt-dip galvanized.
备注：以上产品八五标准型号为：XGU
