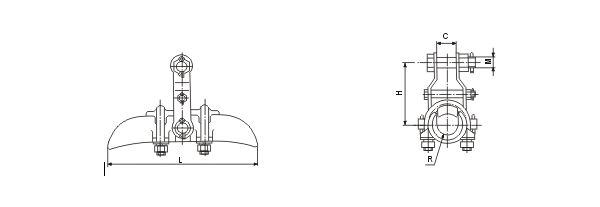

悬垂线夹(CGU 防磨型)
|
型号
Type |
适用导线范围
Applicable conductor(mm) |
主要尺寸
Dimensions(mm) |
破坏荷重
Failure load(kN) |
重量
Weight (kg) |
||||
|
H
|
R
|
L
|
C
|
M
|
||||
|
CGU-2F
|
7.1~13.0
|
103
|
7
|
200
|
18
|
16
|
40
|
2.4
|
|
CGU-3F
|
13.1~21.0
|
121
|
11
|
220
|
18
|
16
|
40
|
2.5
|
线夹本体和压板可锻铸铁件，闭口销为不锈钢制件，可锻铸铁件和钢制件热镀锌。
The clamp body, keepers and socket-clevis are malleable iron, the closed-pin is stainless steel work .The other parts are steel, All ferrows parts are hot-dip galvanized .
备注：以上产品八五标准型号为XGU
