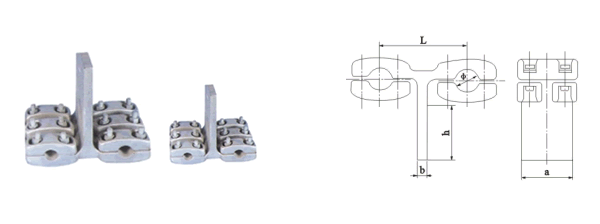

双分裂T型线夹(TLS 螺栓型)
|
型号
Type |
适用导线Applicable bus
|
主要尺寸Dimensions(mm)
|
重量
Weight (kg)
|
||||
|
φ
|
a
|
h
|
b
|
L
|
|||
|
TLS-240/120
|
LGJ-240
|
22
|
50
|
80
|
14
|
120
|
3.8
|
|
TLS-300/120
|
LGJ-300
|
25
|
63
|
100
|
16
|
120
|
4.1
|
|
TLS-400/120
|
LGJ-400
|
28
|
63
|
100
|
16
|
120
|
4.2
|
|
TLS-500/120
|
LGJ-500
|
31
|
80
|
100
|
18
|
120
|
4.3
|
|
TLS-630/120
|
LGJ-630
|
35
|
100
|
100
|
18
|
120
|
4.5
|
|
TLS-800/120
|
LGJ-800
|
39
|
125
|
125
|
20
|
120
|
4.8
|
|
TLS-400N-120
|
NAHLGJQ-400
|
29
|
125
|
125
|
20
|
120
|
5.0
|
|
TLS-600K-120
|
LGKK-600
|
52
|
125
|
125
|
20
|
120
|
5.5
|
|
TLS-900K-120
|
LGKK-900
|
50
|
125
|
125
|
20
|
120
|
5.4
|
|
TLS-1400/120
|
LGJQT-1400
|
52
|
125
|
125
|
20
|
120
|
5.5
|
|
TLS-240/200
|
LGJ-240
|
22
|
50
|
80
|
14
|
200
|
5.0
|
|
TLS-300/200
|
LGJ-300
|
25
|
63
|
100
|
16
|
200
|
5.3
|
|
TLS-400/200
|
LGJ-400
|
28
|
63
|
100
|
16
|
200
|
5.4
|
|
TLS-500/200
|
LGJ-500
|
31
|
80
|
100
|
18
|
200
|
5.5
|
|
TLS-630/200
|
LGJ-630
|
35
|
100
|
100
|
18
|
200
|
5.7
|
|
TLS-800/200
|
LGJ-800
|
39
|
125
|
125
|
20
|
200
|
6.0
|
|
TLS-400N/200
|
NAHLGJQ-400
|
29
|
125
|
125
|
20
|
200
|
6.2
|
|
TLS-630N/200
|
NRLH58GJ-630
|
35
|
150
|
150
|
24
|
200
|
8.8
|
|
TLS-600K/200
|
LGKK-600
|
52
|
125
|
125
|
20
|
200
|
6.8
|
|
TLS-900K-200
|
LGKK-900
|
50
|
125
|
125
|
20
|
200
|
6.6
|
|
TLS-1000N/200
|
NRLH58GJ-1000
|
43
|
150
|
150
|
24
|
200
|
6.2
|
|
TLS-1400/200
|
LGJQT-1400
|
52
|
125
|
125
|
20
|
200
|
6.8
|
|
TLS-1440N-200
|
NRLH58GJQ-1440
|
52
|
150
|
150
|
24
|
200
|
6.5
|
|
TLS-240/400
|
LGJ-240
|
22
|
50
|
80
|
14
|
400
|
6.5
|
|
TLS-300/400
|
LGJ-300
|
25
|
63
|
100
|
16
|
400
|
6.8
|
|
TLS-400/400
|
LGJ-400
|
28
|
63
|
100
|
16
|
400
|
6.9
|
|
TLS-400N/400
|
NAHLGJQ-400
|
29
|
125
|
125
|
20
|
400
|
7.7
|
|
TLS-500/400
|
LGJ-500
|
31
|
80
|
100
|
18
|
400
|
7.1
|
|
TLS-630/400
|
LGJ-630
|
35
|
100
|
100
|
18
|
400
|
7.3
|
|
TLS-800/400
|
LGJ-800
|
39
|
125
|
125
|
20
|
400
|
7.5
|
|
TLS-600K/400
|
LGKK-600
|
52
|
125
|
125
|
20
|
400
|
7.2
|
|
TLS-900K/400
|
LGKK-900
|
50
|
125
|
125
|
20
|
400
|
7.3
|
|
TLS-1400/400
|
LGJQT-1400
|
52
|
125
|
125
|
20
|
400
|
7.2
|
|
TLS-1440N/400
|
NAHLGJQ-1440
|
52
|
150
|
150
|
24
|
400
|
7.5
|
线夹本体和盖板为铝合金制件，其余为热镀锌网制件。
The body and keeper are aluminium alloy ,the other parts are hot –dip galvanized steel.
