框架型阻尼间隔棒(FJZ)
●规格及技术参数Specification
型号
Type
|
适用导线
conductor(mm2) |

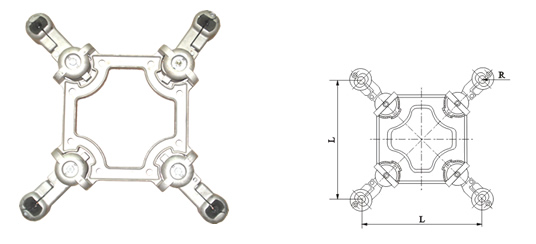

主要尺寸Dimensions(mm)
|
重量
Weight (kg) |
|
L
|
R
|
|||
FJZ-445F/300
|
LGJ-300/20.25.40.50
|
450
|
9.7
|
8.4
|
FJZ-445F/300A
|
LGJ-300/70
|
450
|
10.6
|
8.4
|
FJZ-445F/400
|
LGJ-400/50.65
|
450
|
12.6
|
8.4
|
FJZ-445F/400A
|
LGJ-400/20.25.35
|
450
|
11.4
|
8.4
|
FJZ-445F/400B
|
LGJ-400/95
|
450
|
12.6
|
8.4
|
The clamp is aluminium alloy , Dampers are elastomer , the other parts are hot-dip galvanized steel.
