C型铜线夹(CCT)
|
型号
Type
|
适用铜绞线直径
Copper wiredia
mm
|

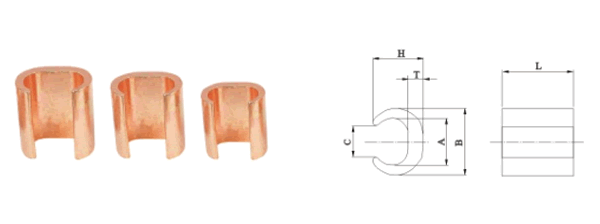

主要尺寸 Dimensions(mm)
|
|||||
|
B
|
A
|
H
|
L
|
C
|
T
|
||
|
CCT-10
|
7.5~10
|
9.5
|
6.3
|
6.2
|
12
|
4
|
1.6
|
|
CCT-16
|
14.5~16
|
11.8
|
7.8
|
7.8
|
13
|
5
|
2
|
|
CCT-20
|
16.5~20
|
12.8
|
8.6
|
9.7
|
13
|
5.4
|
2.9
|
|
CCT-26
|
21~26
|
14.7
|
10.2
|
10
|
16
|
6.5
|
3.2
|
|
CCT-44
|
27~44
|
19
|
13.4
|
14.4
|
20
|
8.5
|
4
|
|
CCT-60
|
45~60
|
21
|
15.4
|
15.4
|
22
|
9.7
|
4
|
|
CCT-76
|
61~76
|
24.4
|
17.3
|
17.6
|
22
|
10.8
|
5
|
|
CCT-98
|
77~98
|
27.8
|
20.8
|
18.8
|
25
|
12.8
|
5
|
|
CCT-122
|
99~122
|
29.8
|
22.1
|
21.2
|
26
|
13.5
|
5.5
|
|
CCT-154
|
123~154
|
34
|
25.7
|
24.4
|
28
|
17
|
6
|
|
CCT-190
|
155~190
|
37
|
28.5
|
25.4
|
35
|
17.4
|
6
|
|
CCT-240
|
191~240
|
40
|
30.2
|
28.5
|
40
|
19
|
7
|
|
CCT-280
|
241~288
|
44.5
|
34.7
|
34.1
|
45
|
22.3
|
7
|
|
CCT-365
|
289~365
|
47.5
|
37.7
|
34
|
50
|
24.8
|
7
|
|
CCT-450
|
366~450
|
57
|
42.5
|
41
|
60
|
28
|
10
|
|
CCT-560
|
451~560
|
62
|
46
|
41
|
65
|
31
|
11
|
|
CCT-700
|
561~710
|
68
|
54
|
49.5
|
70
|
44
|
12
|
