耐张线夹(NY 压缩型、地线用)
|
型号
type |
适用导线
Applicable conductor |

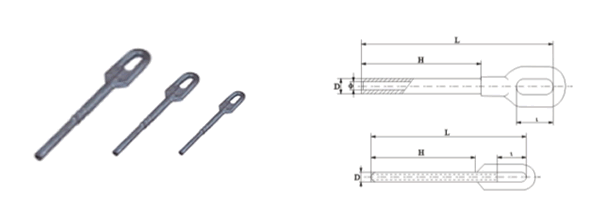

主要尺寸 Dimensions(mm)
|
||||
|
φ
|
D
|
H
|
ι
|
L
|
||
|
NY-35GB
|
7.8
|
8.4
|
16
|
115
|
50
|
195
|
|
NY-50GB
|
9.0
|
9.7
|
18
|
130
|
50
|
210
|
|
NY-55GB
|
9.6
|
10.2
|
20
|
140
|
50
|
220
|
|
NY-70GB
|
11.0
|
11.7
|
22
|
155
|
55
|
245
|
|
NY-80GB
|
11.5
|
12.2
|
24
|
170
|
55
|
260
|
|
NY-100GB
|
13.0
|
13.7
|
26
|
185
|
65
|
290
|
|
NY-120GB
|
14.0
|
14.7
|
28
|
195
|
70
|
310
|
|
NY-135GB
|
15.0
|
15.7
|
30
|
215
|
70
|
330
|
|
NY-100GC
|
13.0
|
13.7
|
28
|
220
|
70
|
325
|
|
NY-125GC
|
14.5
|
15.2
|
32
|
250
|
80
|
360
|
|
NY-150GC
|
16.0
|
16.7
|
34
|
270
|
80
|
395
|
|
B- 钢绞线抗拉强度为1225N/mm2 C-钢绞线抗拉强度为1370N/mm2
|
||||||
