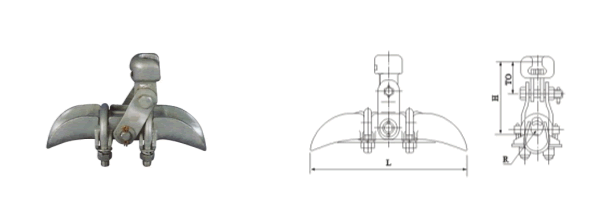

悬垂线夹(CGU 带碗头挂板)
|
型号
Type |
适用导线范围
Applicable conductor(mm) |
主要尺寸
Dimensions(mm) |
破坏荷重
Failure load(kN) |
重量
Weight
(kg)
|
||
|
H
|
L
|
R
|
||||
|
CGU-5A
|
23.0-33.0
|
157
|
300
|
17
|
60
|
5.7
|
|
CGU-6A
|
34.0-45.0
|
163
|
300
|
23
|
60
|
6.1
|
线夹本体、压板和碗头挂板为可锻铸铁件，闭口销为不锈钢制件，其余为钢制件。可锻铸铁件和钢制件热镀锌。
The clamp body , keepers and socket-clevis are malleable iron,the closed-pin is stainless steel work .The other parts are steel.All ferrows parts are hot –do[ galvanized.
备注：以上产品八五标准型号为XGU
